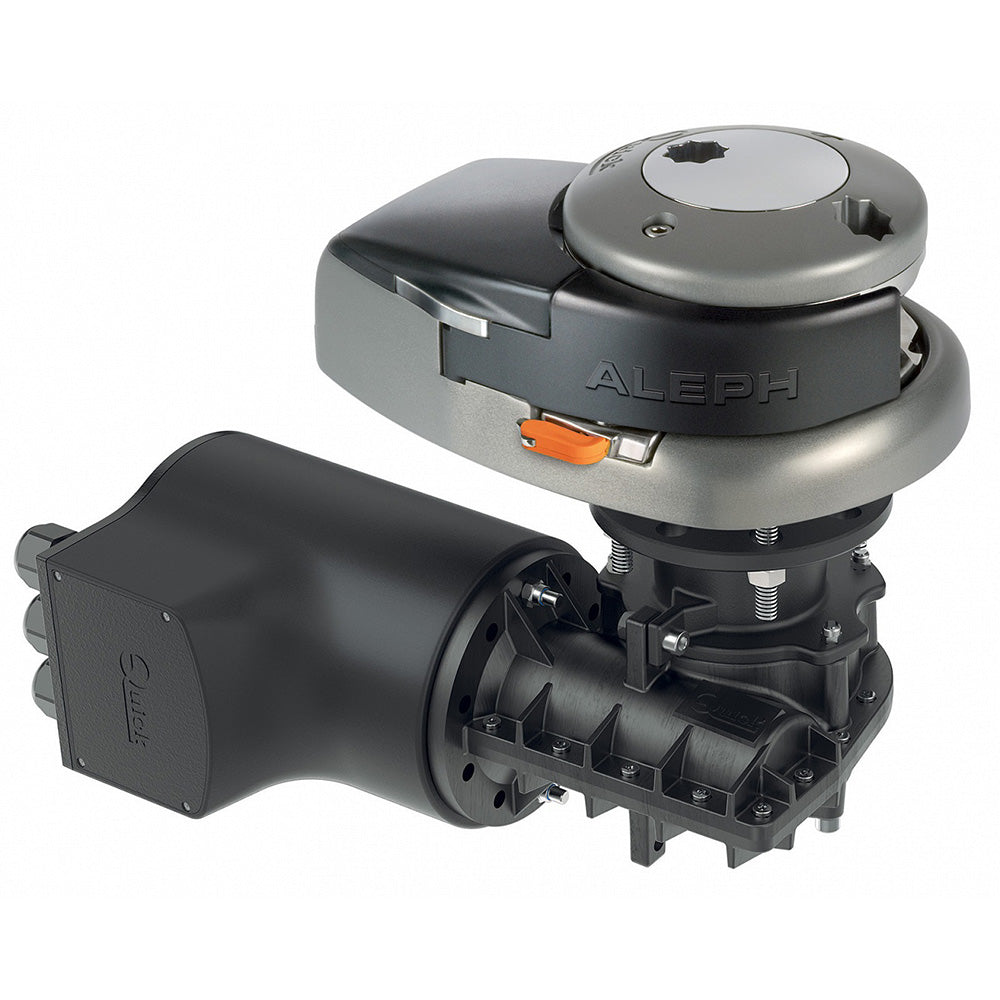

Aleph AL3 1012 Windlass - 12V, 1000W, 8MM, or 5/16" Gypsy to 5/8" Rope

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.

Features:

  • For 33-46FT Boats
  • Vertical windlasses
  • 8mm or 5/16 gypsy
  • Requires 5/8" three-strand polyester rope
  • Includes T6315-12 Solenoid
  • Base in anodized aluminium with hard oxide
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Emergency manual lift system
  • Supplied with pressure lever
  • Inspection lid
  • IP67 watertight motor
  • Technopolymer gearbox (700W / 1000W)

Specifications:

  • Motor power - 700 W
  • Motor supply voltage - 12 V
  • Maximum pull - 1000 Kg / 2204 lb
  • Maximum working load - 370 kg/816 lb
  • Working load - 120 kg/264 lb
  • Current absorption @ working load - 140 A
  • Maximum chain speed - 39,6 m/min 129.2 ft/min
  • Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
  • Weight - 18,6 Kg / 41 lb
